Ground Support Equipment for Telemetry (TM)

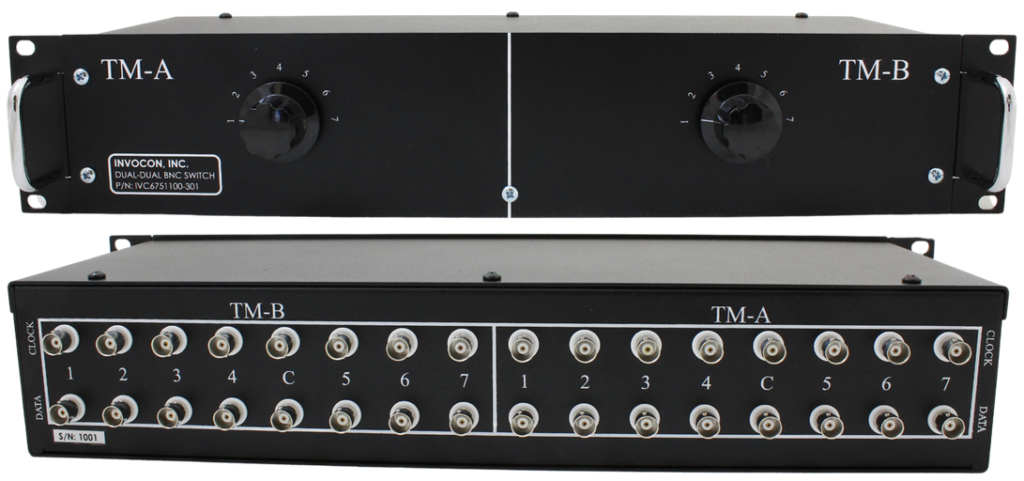

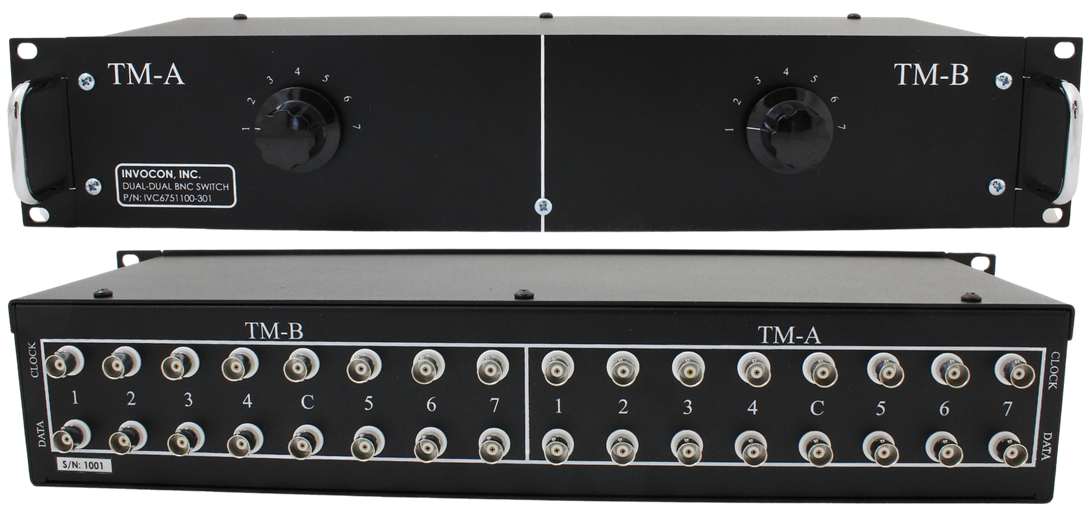

The Invocon Dual-Dual BNC Switch (DDBS) provides dual manually operated 7-position dual BNC switches in a standard 2U 19-inch rack chassis configuration. Each of the two/dual halves allows connecting a common signal (C) to one of 7-positions (1 to 7). Each rotation of a selection knob simultaneously switches both the clock and data signals. Invocon routinely uses the Dual-Dual BNC Switch for IRIG106 Chapter-4 PCM telemetry streams running up to 10 Mbps.
Key DDBS Features:
- Dual (i.e., two) independent switches each allowing selection among 7 pairs of clock and data signals.
- Each half has simultaneously switching of the dual (e.g., clock and data) BNC signals.
- 2U (3.5” H x 19” W) Rackmount Unit
- Dimension (not including hardware & connectors): 18.98” x 5.83” x 3.22” (WxDxH)

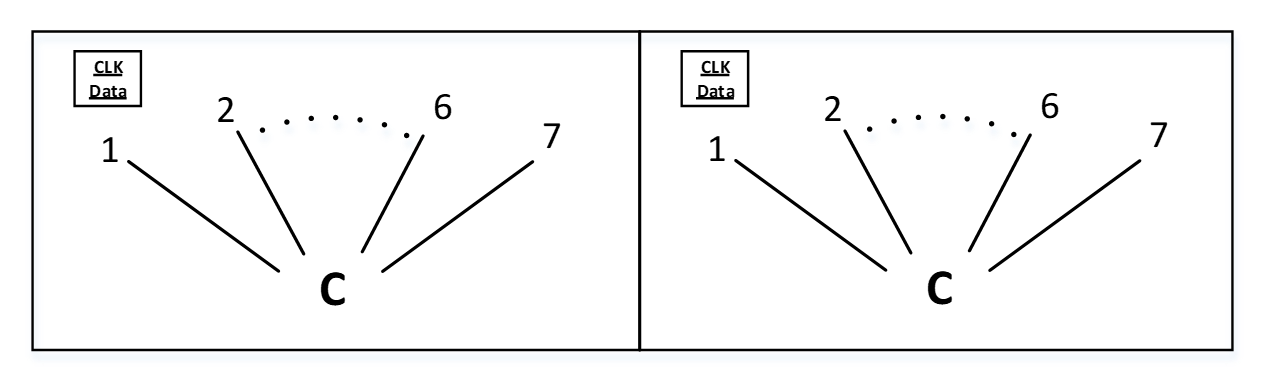

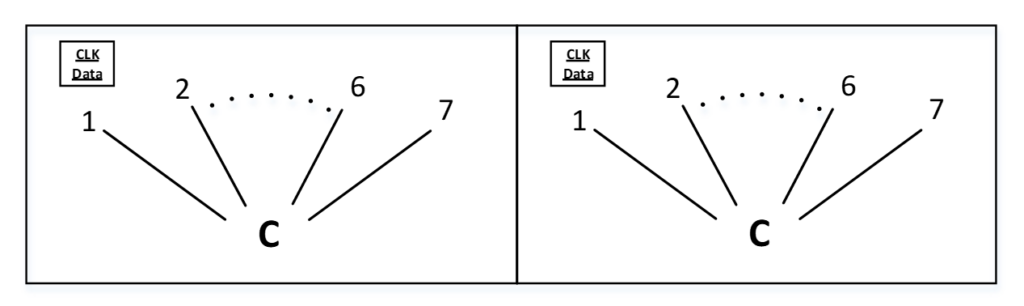

Notional Diagram:
