Integrated Pulse Coded Modulation Encoder (iPCMe)

The Integrated PCM Encoder (iPCMe) provides a significant number of data channels for remote sensing in a highly integrated configuration. With over 100 channels of input in a compact package, the iPCMe is designed as a low-cost solution for a broad range of telemetry applications. Every aspect of the design is intended to simplify integration and survive rugged launch environments — robust aluminum packaging, DB connectors on a single face, and a software PCM Matrix configuration tool that ensures data is packed efficiently into the PCM stream.

Download DatasheetContact an Engineer

Key Specifications

Specification
Value
Analog Input Channels
100 (simultaneous sampling, >15 bits dynamic range)
Digital Input Channels
13 (Discrete, UART, or SDLC; RS-422, LVDS, TTL, or RS-232)
Digital Output
Open-drain
Video Channels
2x NTSC, MUXed to 1x JPEG 2000 output
PCM Output — Copper
RS-422 or LVDS
PCM Output — Fiber
850 nm multimode; up to 2 km over 50/125 µm fiber
PCM Standard
IRIG 106 Chapter 4; optional minor frame CRC; optional RNRZ-L15
Maximum Transmission Rate
12.5 MHz
GPS
Dedicated GPS 1PPS redistribution input
Smart Battery Interface
Dedicated input
Configuration Port
RS-232

Key Features

  • 100+ Channel Simultaneous Analog Sampling

    Simultaneously samples 100 analog channels with greater than 15 bits of dynamic range, providing high-fidelity multi-channel data acquisition in a single unit.

  • Fiber PCM Output

    850 nm multimode fiber PCM output supports transmission distances up to 2 km over 50/125 µm fiber, eliminating copper cable mass and susceptibility to EMI.

  • IRIG 106 Chapter 4 PCM

    Outputs a fully IRIG 106 Ch.4 compliant PCM stream with optional minor frame CRC and optional RNRZ-L15 encoding for range telemetry compatibility.

  • Integrated NTSC Video Multiplexing

    Two NTSC video channels are multiplexed into a single JPEG 2000 video output, consolidating imagery data within the PCM stream.

  • PCM Matrix Configuration Software

    Included software tool provides a PCM matrix configuration interface for efficient channel packing, real-time data display, and unit health/status monitoring.

  • Capture Link™ Interface

    Supports Invocon’s KIPS/WKIPS Capture Link™ interface for lethality assessment bandwidth sharing on the PCM stream.

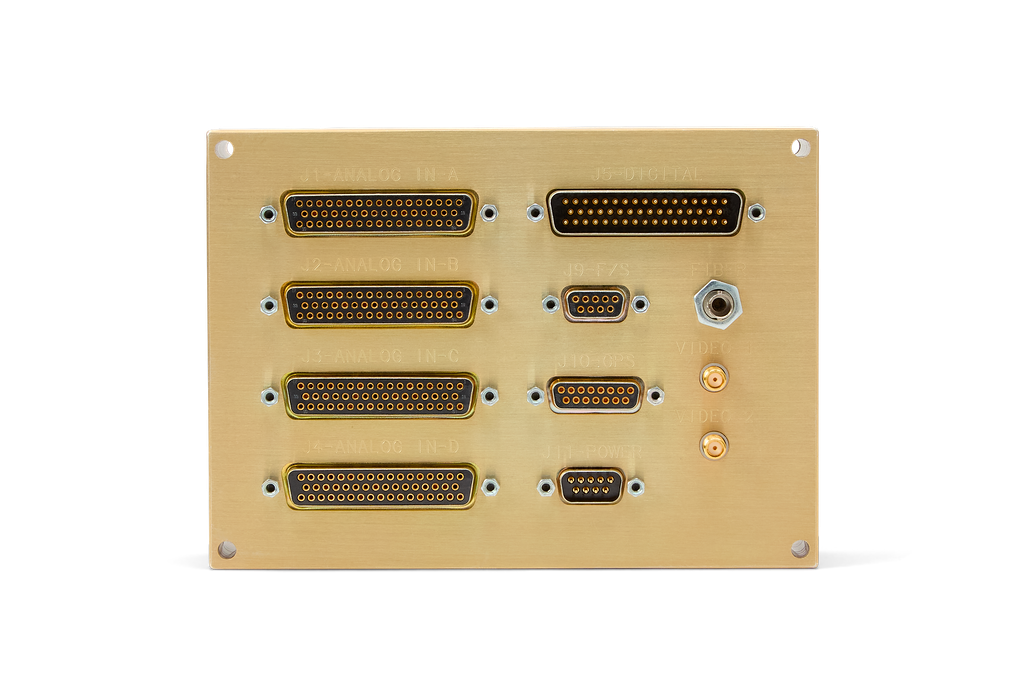

  • Single-Face Connector Layout

    All DB connectors on the top face of the unit eliminate cable routing complexity during integration and reconfiguration.

Typical Applications

  • Launch Vehicle Telemetry

    Encodes and downlinks vehicle health, guidance, and payload data via PCM telemetry over fiber or copper.

  • Range Instrumentation

    Provides IRIG 106-compliant PCM data to range ground systems for real-time monitoring and post-flight analysis.

  • Lethality Assessment / KIPS

    Shares PCM bandwidth with KIPS/WKIPS hit detection systems via Capture Link™ for integrated telemetry.

  • Payload Data Acquisition

    Acquires simultaneous 100-channel analog sensor data for payload instrumentation in space and avionics applications.

  • GPS Timing Distribution

    Redistributes GPS 1PPS across vehicle systems using the dedicated 1PPS input and distribution output.
